Sampling Protocol



Volume II

1.0 INTRODUCTION

This Health and Safety Plan for Intrusive Activity (HASP) has been prepared to meet the U.S. Army's (Army) requirement in lease and transfer documents to the Letterkenny Industrial Development Authority (LIDA) that intrusive work be conducted using health and safety precautions under the assumption that soils and groundwater may be contaminated at Letterkenny Army Depot (LEAD). This HASP has been prepared in accordance with the Occupational Safety and Health Administration (OSHA) requirements for hazardous waste operations and emergency response (29 CFR 1910.120).و It addresses precautions that should be taken by LIDA employees, property owners or leasees, and their contractors when performing certain types of work which may lead to encounters with hazardous substances at property being transferred or leased by the Army to LIDA.و This HASP does not in any way relieve the site personnel, contractors, or subcontractors from responsibility for the health and safety of their personnel.و



1.1و SITE DESCRIPTION/BACKGROUND

LEAD is a U.S. Army- owned and -operated installation in the central portion of Franklin County, Pennsylvania, 5 miles north of the City of Chambersburg (see Figure 1).و The facilityو stores and maintains ammunition, vehicles, missile systems, and repair parts, andو destroys surplus ammunition. In 1995 the Base Realignment and Closure (BRAC) Committee recommended that approximately 1500 acres of LEAD be realigned.و The U.S. Army will be conveying this land to the Letterkenny Industrial Development Authority and all of the property being transferred is part of two United States National Priority List Sites.و The Army has completed numerous environmental investigations and remedial actions at LEAD.و In order to determine the environmental condition of the lands to be transferred, the Army had Phase I Environmental Baseline Surveys (EBS) conducted that included a review of previous environmental investigations, site inspections of the property and buildings, review of historical information and aerial photographs, and interviews with workers.و While most of the soils in the lands being transferred were found not to be contaminated (i.e.,و fell in categories 1, 3 or 4 on Attachment 7 of the Environmental Baseline Study), chlorinated solvents are present in groundwater underlying much or all of this land.وو

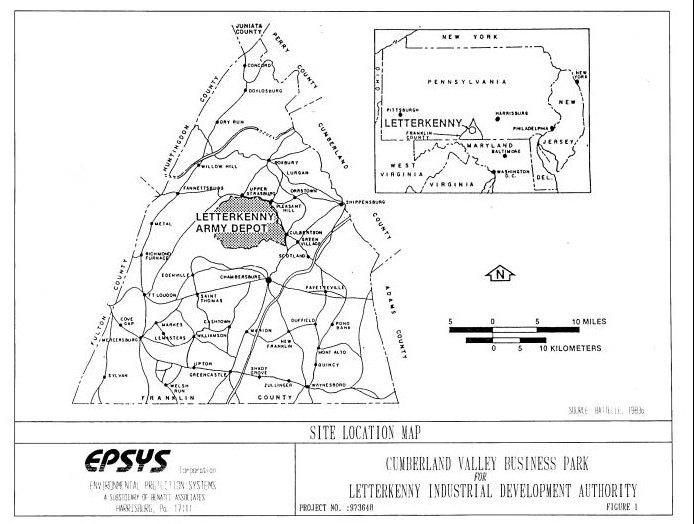

Map of Letterkenny Depot




This HASP will be implemented whenever intrusive activities such as excavation, demolition, drilling or other activities which are conducted which may expose workers to potentially contaminated soils, soil vapors or groundwater are conducted due to maintenance activities, emergency excavation, and/or preconstruction or predevelopment.و A soil gas survey will be conducted prior to maintenance or preconstruction activities in accordance with the ?Sampling Plan for Intrusive Activities,? and in some cases soil samples will be collected and analyzed.و If the soil gas survey results are less than 10 parts per million above background in all locations and no soilو samples exceed PADEP direct contact standards for industrial sites (0 - 2'), the subsequent intrusive activity will not have to follow this Health and Safety Plan.وو

ووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووو

2.0 CONTROL PLAN

The primary purpose for this HASP is to reduce the number of persons exposed to hazardous contaminants.و This can be achieved by:



?                     Identifying known and suspected areas of contamination.

?                     Preventing personnel from inadvertent exposure by restricting access to work areas.

?                     Containing wastes to prevent contaminant transfer away from work areas.



2.1 WORK ZONES

Analytical results of groundwater and soil samples obtained by the Army indicate the widespread presence of groundwater contamination.و Thus, any intrusive work area on the entire site is potentially anو ?exclusion zone,? where only authorized personnel should be permitted to enter.و In practice, the decision to establish an exclusion zone in certain work areas and the size or dimensions of the exclusion zone will be made by the Health and Safety Officer (HSO) or his designee.و The HSO job description and qualifications for the HSO are described in Section 4.0.



Each work area designated as an exclusion zone will have an entry and exit point to regulate personnel entrance to the exclusion zone unless subsequent testing demonstrates that personal protective equipment (PPE) and health and safety precautions listed herein are not necessary (refer to the Sampling Plan for Intrusive Activity).و All personnel entering this exclusion zone must wear the PPE.و At the entry and exit point, a ?contamination reduction corridor? will be established to regulate entry and implement decontamination procedures for personnel and equipment.و A support zone will be established outside the physical barriers. وDecontaminated equipment and supplies are stored in the support zone.و



3.0 HAZARD ASSESSMENT

Groundwater is contaminated over much of the Letterkenny Army Depot with chlorinated solvents.و Seasonally high groundwater depths have been mapped between 5 and 15 feet or more over the majority of the lands being transferred;و therefore, groundwater is not expected to be encountered during most intrusive maintenance and preconstruction activities.و However, groundwater may be present at relatively shallow depths seasonally (e.g., following spring thaw) orو excavations for foundations, sewer pumping lifts, or gravity sewer lines may be sufficiently deep to be in the zone where the potential to encounter groundwater exists.و It is recommended that construction designs and schedules be developed to avoid encountering groundwater.



Previous soil and groundwater investigations at the facility have indicated the presence of the following chemicals:

?                     Chlorinated Solvents: tetrachloroethene (PCE), trichloroethene (TCE), 1,1,1-trichloroethane (1,1,1-TCA), 1,1-dichloroethene (1,1-DCE), 1,2-dichloroethene (1,2-DCE), and 1,1-dichloroethane (1,1-DCA); and degradation products such as vinyl chloride.

?                     Non-halogenated solvents: benzene, toluene, ethylbenzene, xylene, petroleum distillates.وو To date, these compounds have only been found on the BRAC parcels in the immediate vicinity of the oil burn pit, which is undergoing remediation.



Appendix A contains the hazardous property information and Chemical Hazard Data Sheets each contaminant of concern.و



4.0 PERSONNEL RESPONSIBILITY

Compliance with this HASP is required of all personnel who enter an established exclusion zone.و To preclude unnecessary exposure to contaminants, each task will be conducted with only the required number of personnel needed at a given time to complete the assigned duties in a satisfactory manner.و To achieve the highest level of worker safety maintenance and preconstruction activities will be assessed by the HSO.و The HSO will then evaluate whether to be present during work activity.



4.1 HSO

The site HSO and designated alternates, if necessary, will be appointed by LIDA or LIDA's contractor.و In addition to determining the levels of personnel protection necessary for each activity performed on-site, the HSO will have the responsibility of executing the HASP.



The HSO will have the following qualifications:



?                     Training and experience in the use, capabilities, and limitations of dermal and respiratory protective equipment required for Level C and Level B operations described in Chapter 6.0.

?                     A knowledge of the site hazards including acute and long-term toxicology of the contaminants known or suspected to be on-site.

?                     Familiarity with the contents and objectives of this HASP including action levels and emergency procedures.

?                     A working knowledge of the use, capabilities, and limitations of air monitoring equipment, and decision log for selecting respiratory equipment.

?                     A familiarity with methods used in performance of each work activity at the site and support areas.

?                     Forty-hour training required by 29 CFR 1910.120.

?                     Training in first aid and CPR.

?                     Annual medical monitoring.



Specific responsibilities of the HSO follows:



?                     Review site-specific HASPs.

?                     To establish levels of personnel protection required for each work activity, in fulfillment of the requirements of this HASP.و Levels of protection will be established on the basis of air monitoring results in accordance with the specific provisions of this plan.و In the case of conflicting data, the highest indicated safety factor will be implemented as a health precaution.

?                     Document field activities and record field data.

?                     To assure that established safety guidelines are implemented before, during, and after all field activities.

?                     To assure that air monitoring and safety equipment is calibrated and in proper working order.

?                     To assure that personnel are properly trained in safety equipment use and limitations, are medically monitored, 40-hour trained and fit tested prior to making site entries.

?                     To assure that decontamination procedures are carried out effectively.

?                     To conduct debriefings of personnel and address deficiencies or problems that are identified.



It will be within the authority of the HSO to refuse access of unauthorized personnel to the work area, eject personnel from the work area, or cease operations due to noncompliance with the objectives and guidelines established herein, or because of contamination levels being measured that are beyond the scope of personnel preparedness.



5.0 GENERAL GUIDELINES AND PROCEDURES



5.1 Medical Surveillance

Whenever Level C or greater safety precautions are required, a site-specific HASP may be required which establishes a medical surveillance program.و All personnel working within the site exclusion zones will adhere to the following medical surveillance program which satisfies OSHA regulations (29 CFR 1910.134 and 1910.1017).و Its purpose is to accomplish the following:



?                     Establish a baseline for pre-site health status for all personnel who will be on-site.

?                     Report any abnormalities which might seriously interfere with job performance.

?                     Determine the capacity of each individual to perform work while using PPE.



Each individual working within the site exclusion zones will undergo the following medical tests prior to mobilization to the site:



?                     A medical history screening, to determine past work exposure to hazardous chemicals or any other history of blood, nerve, or inherited medical problems.و This will include a history of renal or liver disfunction, drugs routinely taken, alcohol intake, and systemic infections.و Exposure to materials such as cleaning agents, insecticides, and other toxins outside of the current work situation will be documented.

?                     Laboratory tests including the following:

                    A complete blood count (SMK-23) with red cell count, white cell count, differential platelet count, hematocrit, hemoglobin, red cell indices (MCV, MCH, MCHC, serumو bilirubin, and reticulocyte count), and additional tests when in the opinion of the physician, abnormalities in the components in the blood are detected.

                    Urinalysis.

                    Chest x-ray (frequency at the discretion of the physician).

                    Electrocardiogram.

                    Pulmonary function tests, including tests of lung ventilation to measure forced expiratory volume in one second and forced vital capacity, and other factors such as FEF, MMEFR, MMV, FRC, RV, and TLC may be included.



A physical examination may be required during the course of the investigation in situations of possible exposure on the site due to spill, sudden release of chemicals, or failure of PPE; complaints from the individuals which indicate a potential problem; or as part of a routine medical surveillance program as required under 29 CFR 1910.134 and 1910.1017.و In every case, the examining physician shall certify in writing the worker's fitness for work on the site both with and without respirators.



5.2وو Documentation

Records shall be maintained of all factors affecting worker safety and health.و This will include analytical data, weather, conditions, protective equipment in use, and any unusual event that may occur on-site.و In addition, employee training, health monitoring data, health and safety planning documentation, and contingency plan communication and contacts will be filed with LIDA until completion of work.



Each employee's supervisor will be responsible for maintaining up-to-date files of medical and safety related items.و The employer and consulting physician will retain the medical records of on-site workers with the employer receiving only these findings and information which directly affect job performance.و These records will be maintained in a confidential manner such that only authorized persons (such as corporate officers of the employer, medical staff of the employer, or contracted medical personnel, the individual, the individual's personal physician, or the individual's representative) may have access to the reports.و Upon request, the individual may obtain a copy of the medical file from the employer or physician.و Medical records will be retained by the employer or contracting physician for the duration of employment plus 30 years.



5.3 Safety Training

All workers on-site involved with hazardous materials must meet OSHA 1910 safety training requirements.و This program will be administered by the HSO, and will consist of the following components:



?                     Respiratory protection consisting of a pre-work briefing in respiratory protection, prior self-contained breathing apparatus (SCBA) training, and respiratory testing employing irritant smoke.

?                     Physical, chemical, and toxic properties of hazardous materials on-site.

?                     Site operating procedures in levels of personal protection, work zones, perimeter control, decontamination, evacuation and self-rescue, and emergency procedures and signals.



Specific instruction will be provided by the HSO or other qualified personnel.و All individuals working in the exclusion zone will be required to read this HASP and complete the necessary compliance affidavit contained in Section 12.0.



6.0 PERSONNEL PROTECTION

Personnel health and safety protection shall follow the guidelines provided by this HASP.و Modifications to the HASP may be made with the approval of the HSO on a day-to-day basis as conditions change, based on ongoing monitoring.و These revisions will be fully documented to include the specifics and rationalizations for the change.



Personnel protective equipment associated with designated levels of protection (Levels A, B, C, and D) as established by the EPA are shown on Table 2.و In areas designated by the HSO, equipment required for these levels will be issued to all personnel unless other specific equipment is provided for a certain activity by this plan.



6.1 Determination of Level of Protection Requirements

A Sampling Plan for Intrusive Activity has been developed for LIDA at the Letterkenny Army Depot.و Pre-excavation sampling may be required prior to all intrusive activities.و A site-specific HASP or addendum to this HASP may be required before any excavating can begin.و If a HASP is provided, Army approval must be obtained prior to field work.



Known hazardous materials at the site are volatile organics in ground and surface water, soil and sediments.و Invasive activities such as excavating or sampling of soils could liberate these materials into the atmosphere.و Volatile organic compounds (VOCs) and their permissible exposure limits (PELs) are shown on the table in Appendix A.



Certain substances such as metals and polychlorinated biphenyls present a hazard due to airborne particulates.و While these substances are not expected to be encountered on the transferred parcelsو in elevated levels, Appendix A contains PELs for these substances to aid in determining when respiratory protection is needed in the event they are encountered.و There are no breakthrough times for mechanical filter cartridges.و Mechanical filters become clogged with particulates as they are used.و When a mechanical filter becomes difficult to breathe through, it should be replaced.



In order to protect personnel from many of the hazards stated above, full-face air purifying respiratory protection will be required when necessary.و Combination organic vapor, acid gas, and high-efficiency dust filters are required to be fitted to the respirators under these conditions.



Under most circumstances, levels of personnel protection will be established on the basis of ambient air monitoring responses.و This criterion will be applicable to all activities except excavation in known hot spots.و Hot spots are areas where waste material or high levels of soil contamination are encountered.و Levels of personnel protection will be established as follows:



?                     Level D - Total organic vapor concentrations at background to five parts per million (ppm) above background.و Regular worker uniform includes coveralls, steel-toed safety shoes and hard hat (if task requires).و If workers are performing a task which constitutes a skin contact hazard, workersو shall wear chemical-resistant gloves and clothing (?Modified level D?).و Level D will be considered the minimum protection level for work conducted within the exclusion zone.

?                     Level C - Total organic vapor concentrations, from 5 ppm to greater than 100 ppm above background (excluding vinyl chloride) requires a full-face air purifying cartridge respirator equipped with the MSA GMC-H type filter cartridges or equivalent.و These cartridges are approved by the National Institute of Occupational Safety and Health (NIOSH) for organic vapors, acid gases, and dust.و The remainder of the workers uniform should be as described under Level D.

?                     Level B - Total organic vapor concentrations of greater than 100 ppm above background or oxygen concentration less than 19.5 percent requires positive pressure-demand supplied-air breathing apparatus.و All Level B operations will require an additional person on standby to observe each worker in the work zone.و That person will be outfitted with a SCBA at Level B, and will provide for a possible rescue contingency.و All work will be performed within sight of this rescue person.و Chemical-resistant clothing, as described under Level C operations, will be required for Level B operations.

?                     Level A - This level is not expected at the site.و Level A conditions are warranted when additional splash or corrosion protection are needed.و This is achieved with the addition of a chemically protective fully encapsulating suit.



Vinyl chloride is not sufficiently filtered with air-purifying cartridges; therefore, persistent total organic vapor concentrations of exceeding 5 ppm above ambient levels in the breathing zone will necessitate cessation work and the collection of a vinyl chloride gas detector tube sample.و All personnel will remain clear of the area while the HSO obtains the sample.و The HSO will wear Level C protective equipment to minimize his exposure while the sample is drawn.و If the tube indicates concentrations of vinyl chloride exceeding 1 ppm, an upgrade to Level B respiratory protection will be enforced.و In addition to respiratory protection, inner and outer chemical-resistant gloves will be worn.و Disposable tyvek coveralls and chemical-resistant boots will also be employed for body protection.و Gloves and boots will be taped to coveralls to preclude gaseous vapor entry.و If the activity involves the potential for splash of contaminants, body protection will be upgraded to Saranex-coated tyvek with hood.



6.1.1 Dermal Protection

In general, dermal protection levels will correspond with the respiratory protection level in use during an activity.و For most non-invasive activities on the site, cotton coveralls or disposable tyvek coveralls will provide protection against nuisance dust.و When invasive activities are performed, disposable tyvek coveralls will provide protection against dust.و If work tasks are such that splash of contaminated water is possible or imminent, dermal protection will be immediately upgraded to coated tyvek (Saranex).و This determination will be made by the HSO, as required.و Concurrence with DEP will be necessary to reduce personnel protection levels during a project.



Site activities in contaminated areas requires possible handling of contaminated equipment or soil.و Chemical-resistant gloves will be required for all on-site work with contaminated soil and water.و Outer nitrile and inner latex or thin nitrile gloves will be required in the exclusion zone and contamination reduction corridor.و Nitrile gloves will provide adequate chemical and abrasion resistance for the protection of hands and inner latex gloves will assist in preventing transfer of contaminants.



6.1.2و Eye Protection

Since some of the materials found on-site are capable of penetrating skin tissues, the eyes provide aو potential easy route of entry into the body.و Typically, these materials are VOC's, which will be detected in the air monitoring program.و However, dust and airborne particulates are also of concern.و Eye protection requirements will correspond to respiratory protection levels, and full-face respirators will be required in all work areas designated as Level C or higher.و Other tasks which do not represent respiratory hazards, but do represent hazards due to airborne debris or liquid splash will necessitate safety glasses, or goggles, and face shields.



6.2وو Air Monitoring

Contaminant concentrations in soils do not necessarily reflect the concentrations of vapors or particulates released during excavation, though they do serve as a guide.و Variables such as wind velocity and direction, atmospheric pressure, precipitation, and type of invasive activity make it necessary to continuously assess conditions in the working environment to provide adequate levels of personnel protection.و The use of selected air monitoring equipment throughout the operation will provide information to reestablish required levels of protection.



Safety-related assessment of VOC's will be determined in the field using a photoionization detector (PID) organic vapor detector and compound-specific detector tubes.و The PID is quantitative instrument and cannot be used to determine the exact species of organic vapors.و Compound-specific detector tubes will be used for vinyl chloride, which is not sufficiently removed by air purifying respirators.و Detector tubes indicate vapor concentration by the length of a color change resulting from the reaction with the chemical in the tube.



6.2.1و Equipment Calibration

The PID shall be calibrated at the start of each workday prior to the beginning of work and entry on the site and after lunch or after six hours of use.و Calibration shall be documented in a Project Field Book or form.و Calibration shall employ a gas standard of known concentration supplied by the instrument manufacturer, to be injected through the instrument.و At the end of each day of use, the equipment will be cleaned and charged for the following day.



6.2.2 Air Monitoring Location and Frequency

It is the responsibility of the HSO to assure that monitoring provisions are carried out to establish safety guidelines and personnel protection requirements.و Air monitoring shall take place as follows:



?                     Prior to beginning work each day, the command post area, contamination reduction corridor, and the perimeter of the work zone (in a downwind and upwind direction) will be monitored using the PID to determine and document background levels.

?                     Prior to entering any work area within the exclusion zone, appropriate air monitoring utilizing the PID will be performed to assess the degree of contamination in ambient conditions.و The periodic readings in the breathing zone will be used to establish levels of personnel protection for individuals working in that area.و Monitoring frequency will vary from minutes to hours at the judgement of the HSO.و If breathing zone VOC levels exceed 5 ppm above background concentrations, a vinyl chloride detector tube shall be immediately used to determine if the levels exceed the PEL of 1 ppm.و

?                     Monitoring at ground level may also be necessary when encountering high concentrations of flammable VOC's.و VOC's are often heavier than air and may travel a considerable distance to an ignition source.

?                     The HSO will supervise the fitting of protective gear and shall determine the option to proceed.



7.0 TASK-SPECIFIC PERSONNEL PROTECTION GUIDELINES

Specific air monitoring will be performed, and the results will be used by the HSO to establish levels of personnel protection for all site activities.و The following sections provide pre-established protection requirements for some task-specific items.



7.1 Excavating and Soil Sampling

All excavating on the site in known hot spots can be initiated under Level D respiratory and dermal protection.و The HSO will be responsible to conduct sufficient air monitoring to determine whether worker exposure approaches the PELs.و Engineering controls shall be used to abate dust such as working upwind, wetting, or wind barriers.



7.2 Preparation for Entry into a Confined Space

Confined spaces at LEAD/Letterkenny Opportunity Center can include underground and aboveground storage tanks, and some buildings.و Respiratory hazards can also occur in open well-ventilated areas such as low areas, ditches, gullies, or excavations.



7.2.1 Removal of Contents

Confined space should be clean, free of hazardous materials/chemicals, and where necessary, purged by water or other equivalent means.



7.2.2 Isolation

Where possible, all input lines which discharge into the confined space shall be disconnected and capped or isolated.و If this is not possible, all input points must be controlled.و The use of a single in-line valve shut off as the sole means of isolating the confined space from any input line is prohibited.و However, the use of a double in-line valving arrangement with a vent between the two valves is acceptable provided that dangerous air contaminants are not included by such venting.



7.2.3 Electrical Lockout

When electrical devices located within the confined space (motors, switches, etc.) are to be repaired or worked on, the line disconnect switches supplying the power must be tagged and locked in the ?off? position.و The lock key is to be kept by the person performing the job, and only this person is authorized to unlock the switch and remove the tag upon completion of the job.و Where more than one person is working on the line, each must place a lock on the switch and retain their own key.



Line disconnect switches supplying power to any mechanical apparatus in the confined space must also be locked off for any entry, even though work will not be performed on the apparatus itself.



7.2.4 Securing of Covers

All manhole and clean-out covers shall be removed and the openings maintained clear of any obstructions.و When hinged doors or lids are provided, they shall be secured so that they cannot be closed while occupied.و In pedestrian /vehicle trafficked areas, signs/warnings shallو be provided.



7.2.5 Testing Atmosphere

A trained person, as determined by the HSO, shall make appropriate tests of the atmosphere in the confined space to assure that 10 percent of the lower explosive limit is not exceeded, the Threshold Limit Values (TLV) of toxic chemicals are not exceeded, the oxygen content is not lower than 19.5 percent, and these values are stable.



7.2.6 Continuous Monitoring

If the nature of the work to be performed introduces or has the potential to introduce harmful air contaminants, continuous monitoring of the atmosphere is required.و If tests indicate evidence of dangerous air contaminants exceeding the TLV's (OSHA 1910.100), concentration greater than 10 percent of the lower explosive limit and/or the oxygen content drops below 20 percent, all personnel shall evacuate the confined space immediately.



7.2.7 Ventilation

All confined spaces must be ventilated by the use of a positive mechanical exhaust system.و Evacuate a minimum of two air volumes before entry.



7.2.8 Buddy System

At least one standby employee shall be stationed just outside the access opening of any confined space while such space is occupied.و This person shall:



?                     Maintain continuous awareness of the activities and well-being of the occupant of the confined space.

?                     Be able to maintain verbal communication at all times.

?                     Be alert and fully capable of quickly summoning help.

?                     Be physically able and equipped to assist in the rescue of an occupant from a confined space under emergency conditions.



7.2.9 Debris, Materials, Tools

Debris, material, or tools, etc., should be kept away from the opening of confined space where danger of it falling into the confined space exists



7.3 Equipment for Confined Spaces



7.3.1 Means of Entry and Exit

A built-in or portable ladder (OSHA approved) shall be used for a safe means of entering and exiting.و Such means must not obstruct the access opening.



7.3.2 Portable Light

May be battery or transformer operated at 24 volts or less, or must be protected by a ground fault circuit interrupter.و In all cases, it must be explosion proof if used in a flammable vapor area.



7.3.3 High Volume Air Pump

Air pump must be capable of supplying air one volume of air for the volume of confined space being entered.و The air intake line must be a minimum of 15 feet from the discharge point to avoid recirculating contaminated air.



7.3.4 Safety Equipment and Devices

Any person entering a confined space shall use the following safety equipment:



?                     Wrist straps and noose-type devices: Where the location of and/or the dimension of the opening of a confined space is such that a person can only be removed by the lifting of his/her body by the wrists or ankles with a life line, wrist straps or other noose-type devices shall be provided and attached to the life line.

?                     Life line: Approved life line (breaking strength not less than 4,000 pounds) shall be attached to such life belt, approved safety harness, approved wrist straps or approved noose-type wristlets, with the other end securely anchored outside the confined space.

?                     Non-sparking tools: Non-sparking tools and equipment are required when the confined space may contain explosive or flammable air contaminant and the operations involve striking, chipping, hammering, or cutting.

?                     Self-Contained Breathing Apparatus:

                    A SCBA shall be available and located within 15 feet of the opening for use by the standby personnel.

                    When persons are entering an atmosphere which is being purged with an inert gas or if the confined space may still contain hazardous atmosphere, then a SCBA or a hose mask is required.

                    Skin protection: If a contaminant in the confined space can cause dermatitis or can be absorbed through the skin, those entering the confined space must wear protective clothing.

                    Other personal protective equipment: Safety equipment such as safety glasses or goggles, rubber-gloves, safety sleeves, hard hat, hearing protection, or impervious clothing shall be worn when specified by the HSO.



7.4 Contractor Safety Equipment, Test Devices, and Training

?                     Test devices, safety equipment, and materials required to assure a safe entry shall be provided by the party performing the entry.

?                     It is the responsibility of theو party performing the entry to assure that tests are made by qualified personnel, that proper safety equipment is provided and that all requirements for a safe confined space entry are met.

?                     The contractor/subcontractor ensures that its employees are fully informed of the hazardous conditions they might encounter in the confined space, and shall review the safety guidelines for entering a confined space (Table 4) with employees prior to entering any confined space.



8.0و DECONTAMINATION PROCEDURES

All decontamination operations will be performed inside the contamination reduction corridor and supervised by the HSO.و The contamination reduction corridor will be equipped with sprayers, brushes, basins, plastic bags, and drum storage.و Water used in decontamination, disposable outer wear, and contaminated disposable equipment will be drummed or characterized and disposed of properly.



The HSO will inspect personnel protection equipment and clothing to determine if decontamination procedures were sufficient to allow passage into the supported area.و Any equipment which cannot be adequately cleaned will be double-bagged and marked as such until more thorough decontamination can be performed.



Proper on-site decontamination procedures and the use of disposable outer clothing, supplemented by showering as soon as possible after leaving the site, will effectively minimize the opportunity for skin contact with contaminants.



8.1 Personnel Decontamination Procedures

Decontamination procedures to be employed for the various levels of personnel protection are as detailed below.



Level D decontamination will consist of the following:

?                     Wash boots with tri-sodium phosphate or equivalent soap and potable water and rinse with potable water.

?                     Bag or drum all disposable clothing.

?                     Field wash hands and face.



Level C decontamination will consist of the following:

?                     Wash boots and outer gloves with soap and potable water and rinse with potable water.

?                     Remove tape.

?                     Remove outer disposable boots.

?                     Remove outer gloves.

?                     Remove and dispose of tyvek suit.

?                     Remove respirator.

?                     Dispose of respirator cartridges.

?                     Remove inner gloves.

?                     Field wash hands and face with potable water.



Respirators will be assigned to personnel working on the site for the duration of the project.و Decontamination of this equipment will be completed by the assignee under the supervision of the HSO.و Respirators will be washed daily in Alconox soap or equivalent and warm water solution and rinsed following each day's operation.



Following field wash and rinse, respirators will be allowed to drip dry, and will be maintained in a clean storage area.



Level B decontamination will consist of the following:



?                     Wash boots and outer gloves with soap and potable water and rinse with potable water.

?                     Remove tape.

?                     Remove outer disposable boots.

?                     Remove outer gloves.

?                     Rinse and remove SCBA.

?                     Remove and dispose of tyvek suit.

?                     Remove inner gloves.

?                     Field wash hands and face with potable water.



8.2وو Equipment Decontamination

The tires of all support vehicles used in the exclusion zone must be cleaned prior to leaving the site.و Decontamination of vehicles leaving a Level B area will employ high-pressure hot water or steam wash of the underbody, frame, tires, and cargo (tools, etc.).و Devices which tend to concentrate contaminants (such as the air cleaner of the vehicle) will be treated as hazardous materials, placed in plastic bags, and disposed of in drums on the site at the completion of work.و Vehicle decontamination procedures will be performed in the contamination reduction corridor.و All fluids derived from decontamination activities shall be collected, tested (if other sampling analysis exceed DEP protective levels), and disposed.



Other support equipment such as tools, pumps, and generators will be cleaned with high-pressure hot water or steam as needed during the field effort and prior to equipment being taken from the site.و Specific procedures for decontamination of field sampling equipment will be determined by the fieldو sampling plan in order to prevent cross contamination by the sampling equipment.



Personnel protection during equipment decontamination will be one level less than that which was required in the work area in which the equipment was used.و For example, a backhoe which was usedو in a task which required Level B protection will be decontaminated under Level C protection guidelines.و Since there is a hazard of splash of contaminated fluids during high pressure cleaning of vehicles, personnel will br required to perform decontamination with a minimum of water-resistant Level C outer clothing and full-face cartridge respirator or face shield.



9.0وو CONTINGENCY PLANNING



9.1 Emergency Procedures

In the event of a medical emergency, the HSO should be immediately notified.و Typical first aid procedures for contact with hazardous materials are described below:



?                     Skin contact: In the event of personnel exposure to potentially toxic or hazardous contaminants by skin contact, the following procedures will be employed:

                    Wash skin and rinse with copious amounts of soap and water for at least 15 minutes.

                    Decontaminate if the situation allows.

                    If necessary, transport affected individual to the nearest hospital or poison control center.



?                     Inhalation: In the case of inadvertent inhalation of potentially toxic contaminants, the following procedures will be employed:

                    Victim should be moved to fresh air.

                    Decontaminate if the situation allows.

                    Transport immediately to a medical facility.

?                     Ingestion: If ingestion of a potentially toxic, hazardous, or unidentified substance has occurred, the victim will be decontaminated if the situation allows and transported to the nearest poison control center or emergency medical facility.

?                     Injury: In the event of a personnel injury, emergency first aid will be applied on-site as deemed necessary.و The victim should be decontaminated if the situation allows and transported to the nearest medical facility, if needed.

?                     Environmental incident: In the event of an environmental incident caused by a spill or other spread of contamination outside the exclusion zone, personnel will attempt to secure the spread of contamination if possible, and the state police will be notified.و The HSO will be in charge of contacting the emergency response groups, directing first aid procedures, and securing the site.و The HSO will also be responsible for completing an Incident Report Form (see Appendix B).



9.2 Emergency Telephone Numbers and Routes

Table 9-1 lists important emergency telephone numbers.و These numbers shall be posted near telephones close to the site or in the vehicles with telephones.



Injured personnel shall be taken to Chambersburg Hospital located at 7th and King Street, Chambersburg, Pennsylvania.و The hospital is approximately 5.5 miles away with a travel time of 8 to 10 minutes. Figure 2 depicts the Route to the hospital.و Directions to the hospital are as follows:



?                     Exit from South Gate (Gate 1) onto Letterkenny Road

?                     Turn left on Salem Road.

?                     Turn right on Philadelphia Avenue (Route 11 South).

?                     Turn left on Norland Avenue.

?                     Turn right on 5th Avenue.

?                     Turn left on Montgomery Street.

?                     Turn right on 7th Street.

?                     Hospital is located on the corner of 7th Street and King Street.



From Gate 6:



?                     Exit from Gate 6.

?                     Turn right on Route 433.

?                     Turn right on Philadelphia Avenue (Route 11 South).

?                     Turn left on Norland Avenue.

?                     Turn right on 5th Avenue.

?                     Turn left on Montgomery Street.

?                     Turn right on 7th Street.

?                     Hospital is located on the corner of 7th Street and King Street.




Map of Hospital Route






ووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووو Table 9-1

وووووووووووووووووووووووووووووووووووووووووووووووووو Emergency Telephone Numbers

Incident

Contact

Telephone Number

Fire/Explosion

LEAD Fire Department

911 Emergency; 267-9101

Personal Injury

LEAD Emergency Operations Center (ambulance)

911



LEAD Safety Office

717-267-5253



Chambersburg Hospital

717-267-7146

USAC Safety Officer

William Houser

410-612-6869

Spill/Accidental Release*

Installation On-Scene

Coordinator: Randy Quinn

717-267-9690 or

267-8483

Additional

Telephone Numbers



LIDA

John Van Horn

717-267-9532

USAEC Project Manager

Paul R. Stone III

Mobile: 717-261-6863

Office: 410-671-1517 or

410-962-4906

Home: 410-671-9871

Lead Environmental Coord.

Bryan Hoke

717-267-9836

EPSYS

Dave Mooney

Mobile: 717-979-7539

Office: 717-558-9822 xt. 16

Site Health & Safety Officer (SHSO)





EPA ? Project Manager

Stacie Driscoll

215-566-3368

PADEP ? Project Manager

Noreen Wagner

717-657-4592

Police

LEAD Police Dept.

267-8800 or 911 in Emergency



Pennsylvania State Police

717-264-5161

Poison Control



717-264-5171

National Response Center*



800-424-8802

*Only Army representatives are to report releases to spill center.

9.3و Evacuation Plan

In the event of an emergency situation such as fire, explosion, release of toxic gases, dust, etc., a pre-determined audible signal (e.g., a vehicle horn) will be sounded for approximately 30 seconds indicating the initiation of evacuation procedures.و All personnel in both exclusion zone and support zone will evacuate the area and assemble upwind in another safe area, as identified by the HSO on-site.و This location will be determined on a daily basis depending on the direction of the wind, and will be efficient and safe site evacuation and assessment of emergency situations and for assuring that the authorities are notified for possible evacuation of the surrounding residences.و Section 9.2 contains names, telephone numbers, and the appropriate order of notification in the event of an emergency.و



Under no circumstances will incoming personnel or visitors be allowed to proceed into the area once the emergency signal has been given.و The HSO must see that access for emergency equipment is provided and that all equipment has been shutdown and evacuated once the alarm has been sounded.



10.0 INCIDENT REPORTING

At the conclusion of any environmental incident, a report must be prepared by the HSO.وو The report should contain a general description of how the incident occurred, hazard abatement, and injuries or affected personnel.وو Appendix B contains an example Incident Report form.و



11.0 GENERAL WORK RULES

?                     Eating, drinking, chewing gum or tobacco, smoking, or any other practice that increases the probability of hand-to-mouth transfer and ingestion of hazardous materials is prohibited in an established exclusion zone and contamination reduction zone.

?                     Hands and face shall be thoroughly washed upon leaving the exclusion zone and before eating, drinking, or any other similar activity.

?                     Whenever Level C or above decontamination procedures for outer garments are in effect, the entire body shall be thoroughly washed as soon as possible after the protective garment is removed.

?                     Facial hair which interferes with satisfactory adjustment and fit of the respirator is defined as a safety hazard and will not be allowed on personnel required to wear such protective equipment.

?                     Contact with contaminated or suspected contaminated surfaces shall be avoided.و Whenever possible, avoid personal and equipment contact with puddles, mud, and other discolored surfaces.و Do not place equipment or sit on a known or suspected contaminated surface.

?                     Work upwind of contaminated media.و Minimize cross contamination by storing equipment and supplies in an upwind direction.

?                     Medicines and alcohol can exaggerate the effects of exposure to toxic chemicals.و Prescribed drugs shall not be taken by personnel on-site where the potential for absorption, inhalation, or ingestion of toxic substances exists, unless specifically approved by a qualified physician.

?                     Eye glasses are not compatible for use with full-face respiratory equipment, and contact lenses have the tendency to trap vapors between the eye and the lens, allowing vapor absorption to the body via eye tissue.و In addition, dislodged contacts can be a problem when on-site.و Therefore, use of these devices shall be prohibited.و Prescription lens inserts are available for most full-face respirators and shall be used if vision correction is necessary.

?                     The buddy system will be maintained in all operations within the exclusion zone.و Personnel shall maintain communications with their assigned partner and watch for signs of fatigue, exposure, etc.

?                     No work will be conducted in the exclusion zone without appropriate supervision and air quality monitoring.

?                     All personnel working on-site are required to read and comply with this HASP.

?                     The personnel health and safety compliance affidavit (Appendix A) must be signed and dated by each person directed to work on the site.

?                     Any persons entering the exclusion zone shall maintain communications via a radio or cell phone.



12.0 AFFIDAVIT OF COMPLIANCE

Since all personnel working on-site are required to read and comply with this HASP, the following safety compliance affidavit shall be signed and dated by each person directed to work on the site on a full-time basis.







I,__________________________________, of_______________________________________

ووووووووووووووووووووو (Name)ووووووووووووووووووووووووووووووووووووووووووووووووووووووووو (Company Name)



have read the HASP for LIDA.و I agree to conduct all on-site work in conformity with the requirements ofو the HASP,و and I acknowledge that failure to comply with the designated procedures in the HASP may lead to my removal from the site.





__________________________________ووووووووووووووووووووو _________________________________

.ووووووووووووووووووو (Signature)ووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووو (Date)

ووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووووو





APPENDIX A ? Chemical Hazard Information

Chemical Hazard Chart 1

Chemical Hazard Chart 2

Chemical Hazard Chart 3

Chemical Hazard Chart 4



APPENDIX B ? Incident Reporting Forms

Site Safety Follow Up Report

Incident Report


For More Information Contact:

Letterkenny Industrial Development Authority
5540 Coffey Avenue
Chambersburg, PA 17201-8380
Phone: (717)267-9351 x29
Fax: (717)-267-9353

info@cvbp.com

This site was produced byCVNS and is Co pyright ©1999 all rights reserved

Back to the Index Page


Back Back to Home Page
